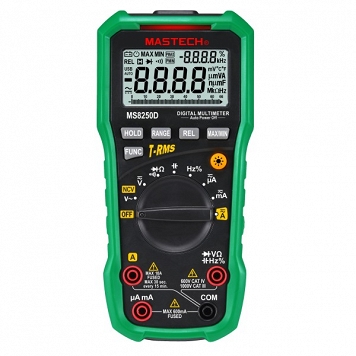

NCV/USB MS8250D Mastech

  • Ajouter votre opinion:
  • Disponibilité: Jest
     (2500 szt.)

DC Voltage 660mV +-(0.8%+3)

                6.6V/66V/660V/1000V +-(0.5%+5)

AC Voltage 660mV +-(1.5%+5)

                6.6V/66V +-(1.2%+5)

                660V/1000V +-(1.0%+3)

DC Current 660µA/6600µA/66mA/660mA +-(1.0%+5)

                10A +-(2.0%+5)

AC Current 660µA/6600µA/66mA/660mA +-(1.5%+5)

                10A +-(3.0%+5)

Resistance 660Ω/6.6/66/660KΩ/6.6MΩ +-(0.8%+5)

                66MΩ +-(1.5%+5)

Capacitance 6.6nF +-(4.0%+5)

                        66/660nF/6.6/66/660µF +-(3.0%+3)

                        6.6mF/66mF +-(4.0%+5)

Frequency 66Hz/660Hz/6.6kHz/66kHz/660kHz/6.6MHz/66MHz +-(1.5%+5)

Duty Cycle 0.1%~99.9% +-(2%+2)

  • Auto range and manual range.
  • Full range overload protection
  • Max. voltage between terminal and ground:
    CAT IV, 600V DC or AC rms.
    CAT III, 1000V DC or AC rms.
  • Operational altitude: 2000 m max.
  • Display: LCD
  • Displayed maximum value: 6599
  • Polarity Indication: Automatically display " - "
  • Over range indication: "OL " or "-OL"
  • Sampling rate: approx. 0.4s/analog bar graph: approx.0.04s except for current measurement: approx. 1s/bar graph: 0.1s
  • Unit display: functions and unit power
  • Auto power off time: approx.15 min.
  • Power Supply: 9V Battery
  • Low Battery Indication: displays shows '  '
  • Temperature coefficient: less than 0.1 x accuracy/℃
  • Operating temperature: 0℃ to 40℃
  • Storage temperature: -10℃ to 50℃
  • Dimension: 180x86x52mm
  • Weight: about 250g (without battery)
  • Order Ref. Number: MS8250DC15L
  • Display: 6600 counts
  • Auto Ranging
  • Manual Ranging
  • Auto Power Off
  • Relative Measurement
  • True Root Mean Square
  • Non-Contact Voltage Detection
  • Diode: 3.2V
  • Continuity Buzzer: <50Ω
  • MAX/MIN
  • Bar Graph
  • Data hold
  • Low Battery Display
  • Display Backlight
  • USB Interface: Windows OS
